1 . Function description

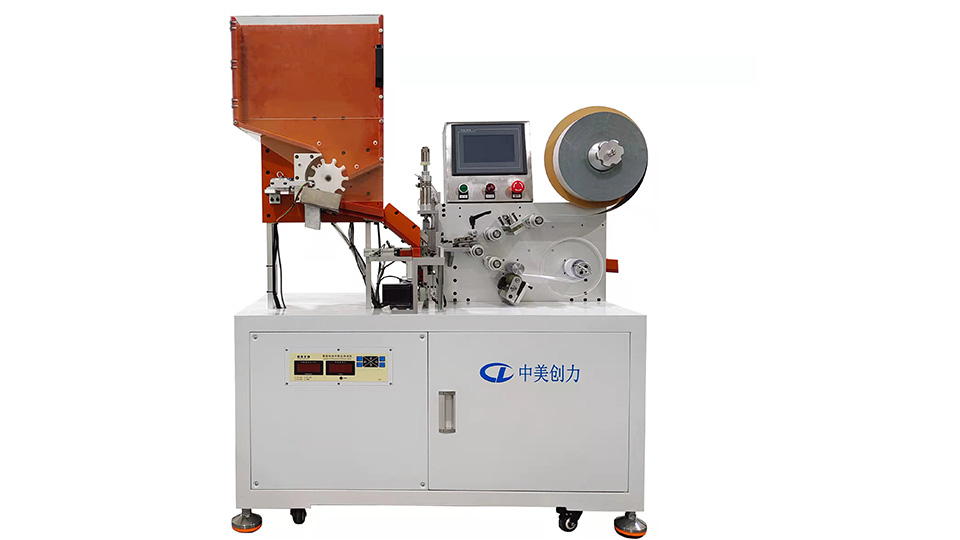

The single cell side pasting highland barley paper machine is a lithium battery assembly equipment used to paste highland barley paper on the side of a single cylindrical cell. It adopts high-precision stepper motor positioning transmission, vertical pressing and side pressing. It has the characteristics of firm fitting, high precision and fast speed. This equipment produces about 3000 electric cores per hour, with simple and generous structural design and stable performance.

General battery specification: 18500 / 18650 / 21700

2. Process flow

Operate and set parameters through the software of man-machine interface, and PLC automatically completes the following functions: manually loading the battery to the silo → falling into the transmission device to carry the battery through the loading wheel → automatic paper pulling and cutting in the sticker station → vertical pressing in the vertical pressing station → side pressing in the side pressing station again → belt transmission to remove the battery; The equipment is equipped with audible and visual alarm, with material shortage alarm, fault alarm, etc. The operating parameters can be set according to the actual requirements of customers.

3. Equipment structure

1) The equipment has compact and reasonable structure, beautiful appearance and small occupied space.

2) The equipment is easy to operate and can be easily mastered by workers without professional training.

3) The equipment is controlled by PLC + touch screen. PLC is responsible for battery feeding, transporting, pasting, discharging and other actions

The touch screen is responsible for parameter setting, data acquisition, operation control, etc. the fool type operation is simple and easy to learn, and the work efficiency is high

High, save labor cost and good product performance.

4) The equipment material adopts high-quality thick cold-rolled sheet metal frame.

5) The equipment is equipped with universal movable casters, which can move easily when the equipment is displaced.

4. Technical parameters of equipment

● working voltage: single phase AC220V ± 10% / 50Hz, total power: 650W

● working air source: 0.4 ~ 0.6MPa

● applicable Battery Specification: 18500 / 18650 / 21700 finished cell

● sticker width: 5-10mm

● operation efficiency: ≥ 50ppm

● equipment weight: About 100kg

● overall dimension: 1070 (length) × 600 (width) × 1376 (height) mm

● frame material: made of high-quality thick cold-rolled sheet.

● electric control devices: display control PLC, stepping motor control, brand sensor and other accessories are adopted.

● operation configuration: HMI

● specifications of highland barley paper: 0.25mm thick, inner diameter 76mm, maximum outer diameter 270mm, paper width range 30-80mm

The above is the relevant introduction of highland barley machine for side pasting of single energy-saving cell. If you are concerned about the problems related to these lithium battery assembly equipment: Battery sorter, battery spot welder, battery automatic highland barley paper machine, series parallel spot welder, battery aging cabinet, etc., you can communicate with us to customize and produce solutions suitable for you!
